Image Sensor |
H7440 |
PC4089(HD) |
GC2053(AHD) |
N536(AHD-CVBS) |
|
Sensor Size |
1/4” |
1/3” |
1/2.9” |
1/4” |
|
Effective Pixels |
733*493 |
720*480 |
1280*720 |
1280*720 |
|
Resolution |
480TVL |
600TVL |
700TVL |
700TVL |
|
View Angle |
100°/80°/170° |
120°/100°/170° |
110°/65°/170° |
130°/70°/170° |
|
TV System |
PAL/NTSC |
PAL/NTSC |
PAL/NTSC |
PAL/NTSC |
|
Minimum Illumination |
0.6Lux |
0.1Lux |
0.01Lux |
0.01Lux |
|
Working Current |
70mA |
80mA |
130mA |
130mA |
|
Scanning System |
525lines, 60 fields/sec |
|||
|
Electric Shutter |
1/60~1/100000 seconds |
|||
|
Frame Frequency |
25/30fps |
|||
|
Working Voltage |
DC 12V |
|||
|
Working Voltage Range |
DC 9V~15V |
|||
|
Operating Temperature |
-20℃~+70℃ |
|||
|
Storage Temperature |
-40℃~+80℃ |
|||
|
Waterproof Grade |
IP67(Lens only) |
|||
|

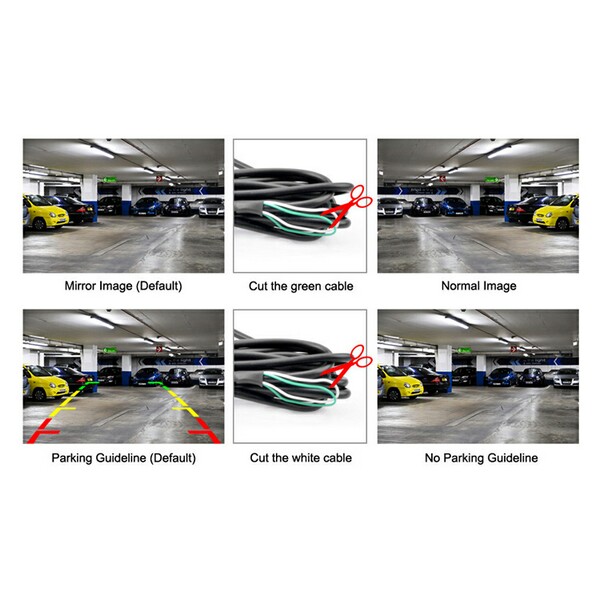

Switch Function |
Green wire: Mirror/normal view White wire: Parking guideline ON/OFF |
Option 1: Green wire: AHD-CVBS signal White wire: Parking guideline ON/OFF
Option 2: Green wire: AHD-CVBS signal White wire: Mirror/normal view
Option 3: Green wire: Mirror/normal view White wire: Parking guideline ON/OFF |
||
|
Whole Set Included |
1*Camera 1*DC power cable 1*Video cable 1*User’s manual 1*Package box Related accessories, like hole driller, screws, 3M tape, etc. |
|||
