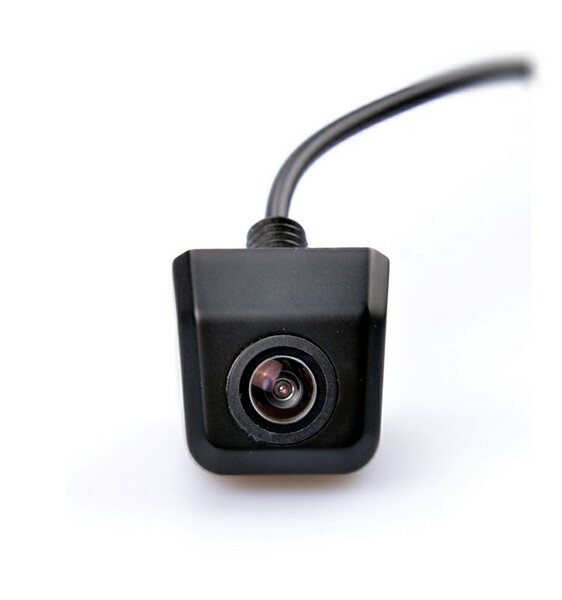

BTV-C19

Image Sensor

H7440

PC4089(HD)

GC2053(AHD)

N536(AHD-CVBS)

Sensor Size

1/4¡±

1/3¡±

1/2.9¡±

1/4¡±

Effective Pixels

733*493

720*480

1280*720

1280*720

Resolution

480TVL

600TVL

700TVL

700TVL

View Angle

100¡ã/80¡ã/170¡ã

120¡ã/100¡ã/170¡ã

110¡ã/65¡ã/170¡ã

130¡ã/70¡ã/170¡ã

TV System

PAL/NTSC

PAL/NTSC

PAL/NTSC

PAL/NTSC

Minimum Illumination

0.6Lux

0.1Lux

0.01Lux

0.01Lux

Working Current

70mA

80mA

130mA

130mA

Scanning System

525lines, 60 fields/sec

Electric Shutter

1/60~1/100000 seconds

Frame Frequency

25/30fps

Working Voltage

DC 12V

Working Voltage Range

DC 9V~15V

Operating Temperature

-20¡æ~+70¡æ

Storage Temperature

-40¡æ~+80¡æ

Waterproof Grade

IP67(Lens only)

Switch Function






Green wire: Mirror/normal view

White wire: Parking guideline ON/OFF

Option 1:

Green wire: AHD-CVBS signal

White wire: Parking guideline ON/OFF


Option 2:

Green wire: AHD-CVBS signal

White wire: Mirror/normal view


Option 3:

Green wire: Mirror/normal view

White wire: Parking guideline ON/OFF

Whole Set

Included

1*Camera

1*DC power cable

1*Video cable

1*User¡¯s manual

1*Package box

Related accessories, like hole driller, screws, 3M tape, etc.
