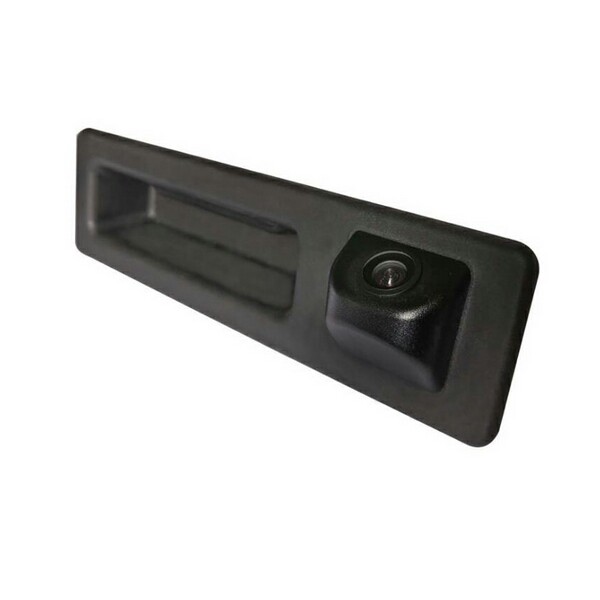

11/12/14/15 BMW 5 series
12/15 BMW 3 series
12/15 BMW X3/X4/X5
|
Image Sensor |
H7440 |
PC4089(HD) |
GC2053(AHD) |
N536(AHD-CVBS) |
|
Sensor Size |
1/4¡± |
1/3¡± |
1/2.9¡± |
1/4¡± |
|
Effective Pixels |
733*493 |
720*480 |
1280*720 |
1280*720 |
|
Resolution |
480TVL |
600TVL |
700TVL |
700TVL |
|
View Angle |
100¡ã/80¡ã/170¡ã |
120¡ã/100¡ã/170¡ã |
110¡ã/65¡ã/170¡ã |
130¡ã/70¡ã/170¡ã |
|
TV System |
PAL/NTSC |
PAL/NTSC |
PAL/NTSC |
PAL/NTSC |
|
Minimum Illumination |
0.6Lux |
0.1Lux |
0.01Lux |
0.01Lux |
|
Working Current |
70mA |
80mA |
130mA |
130mA |
|
Scanning System |
525lines, 60 fields/sec |
|||
|
Electric Shutter |
1/60~1/100000 seconds |
|||
|
Frame Frequency |
25/30fps |
|||
|
Working Voltage |
DC 12V |
|||
|
Working Voltage Range |
DC 9V~15V |
|||
|
Operating Temperature |
-20¡æ~+70¡æ |
|||
|
Storage Temperature |
-40¡æ~+80¡æ |
|||
|
Waterproof Grade |
IP67(Lens only) |
|||
|
Switch Function |
Green wire: Mirror/normal view White wire: Parking guideline ON/OFF |
Option 1: Green wire: AHD-CVBS signal White wire: Parking guideline ON/OFF
Option 2: Green wire: AHD-CVBS signal White wire: Mirror/normal view
Option 3: Green wire: Mirror/normal view White wire: Parking guideline ON/OFF
|
||
|
Whole Set Included |
1*Camera 1*DC power cable 1*Video cable 1*User¡¯s manual 1*Package box Related accessories, like hole driller, screws, 3M tape, etc. |
|||
