System structure: |
Embedded Linux system, ARM chip structure |
|
Chip: |
AK3918E V330 |
|
Resolution: |
3MP 1920*1596 |
|
Sensor Resolution: |
CMOS SC2335H 1920x1596 |
|
Lens: |
3.6 MM |
|
View angle: |
80¡ã |
|

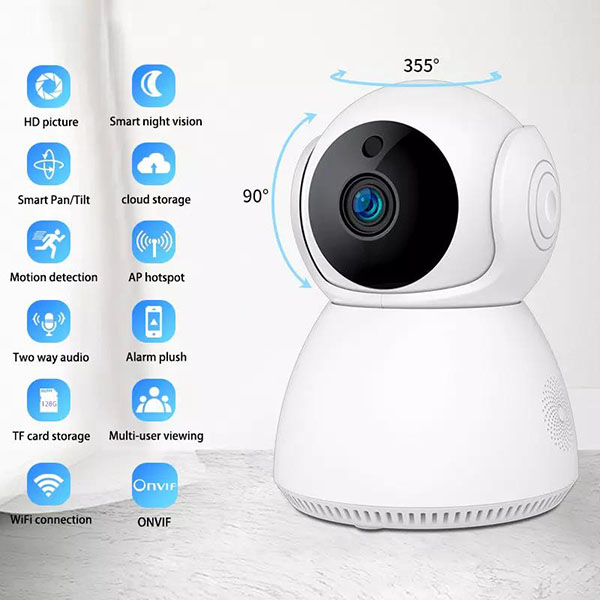

Pan-tilt: |
Rotates Horizontal:355¡ãVertical£º90¡ã |
|
cruise setting point quantity |
6 |
|
Video compression standard: |
H.265/20FPS |
|
Minimum illumination: |
0.01Lux@£¨F2.0£¬VGC ON),O.Luxwith IR |
|
Electronic shutter: |
Auto |
|
Backlight compensation: |
Support |
|
Noise reduction: |
2D¡¢3D |
|

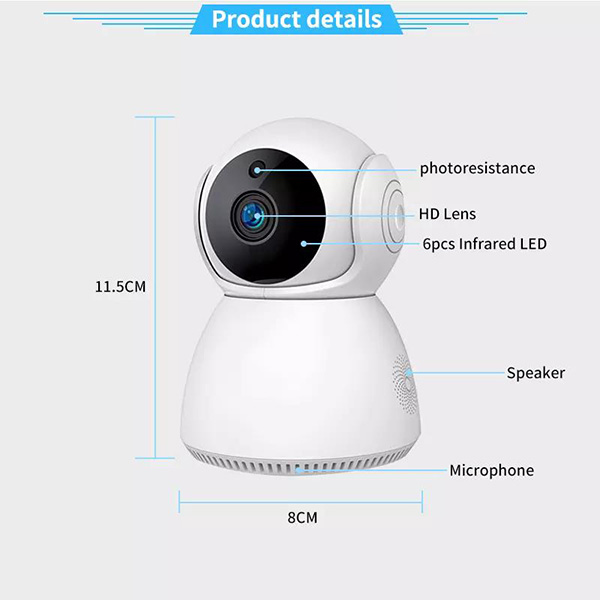

LED quantity: |
6pcs Infrared LED |
|
Network: |
WIFI wireless transmission (support IEEE802.11b/g/n wireless protocol). |
|
Night vision |
IR-CUT switch Automatic£¬about 5-8meters (It varies from environment) |
|
Audio: |
Built-in microphone and
speaker, support two-way audio and real-time transmission. |
|
Network protocol: |
TCP/IP¡¢UDP¡¢HTTP |
|
Alarm: |
¢ÙMotion detection and picture
push |
|
Storage: |
TF Card£¨Max 128G£©£»Cloud storage /Cloud disk (optional) |
|
Power input: |
5V/1.5A |
